Name: Sokkia iX-700 Robotic Total Station
SKU: 45212
Availability: InStock

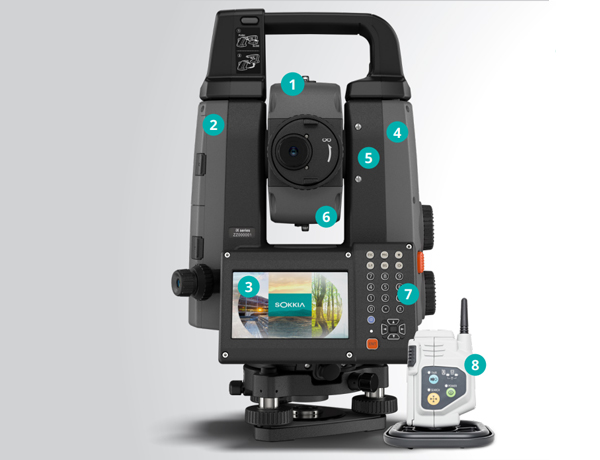

Sokkia iX-700 Robotic Total Station

Precise positioning with single-person operation
High-speed advanced BLDC motors
Easy-to-use with software
Seamless integration into BIM workflows
Available in iX-700 models with multiple accuracy levels
Three-year instrument and five-year motor warranty
Ultra-rugged IP65 dust and water resistance

The ultimate total station

With the iX-700, you get the efficiency of a single-operator robotic system, the power of long-range reflectorless measurements, and the versatility of Hybrid Positioning™, all in your choice of 2”, 3” or 5” iX-700 models.

10 Hz update rates for faster, more efficient staking
150°/sec turning speed for exceptional productivity
30% smaller and lighter than any other Sokkia series robotic instrument
Stay productive, stay confident with UltraTracTM prism lock technology
GNSS hybrid is ready so you can handle any job site
Five-year UltraSonic motor warranty

Ultra powerful

Improved, intelligent Ultrasonic motor control provides smoother operation with less wear and tear. Ideal for survey or vertical construction, the solution is designed to stake or layout more points in less time even in challenging conditions.

Ultra accurate

UltraTrac™ prism tracking utilizes optical sensing combined with high-speed Ultrasonic motor control. Whether working at a distance or up close, the instrument maintains prism lock making you more productive in any environment.

Ultra productive

Combine and conquer with our hybrid solutions that utilize both GNSS and robotics so you can capture the shot, regardless of tree cover, loss of line of sight, or hard to reach points. Tackle any project in a fraction of the time.

Accuracy	2", 3", 5" (0.6, 1.0, 1.5) mgon
Motor	Ultrasonic (USM)
UltraTrac range	360° Prism ATP1/ATP1S: 600m (1968ft)
RC range	Up to 600m (1968ft)
Dual-axis compensator (Tilt)	±6'
Field Software	MAGNET Field/GeoPro/3rd parties
Data Storage	Internal: 1GB USB: Up to 32GB
Interface	RS-232C, USB 2.0 (Type A and mini B)
LongLink™	Yes. Up to 600m
WiFi	IEEE 802.11 b/g/n
Guide Light	Green LED (524nm) and Red LED (626nm) Operating range: 1.3 to 150m (4.3 to 490ft)
Ingress protection	IP65 (IEC 60529:2001)
Operating temperature	-20 to +50°C (-4 to +122°F)
Dimensions	212(W) x 172(D) x 355(H)mm, 8.32" x 6.77" x 13.97"
Weight with battry & tribrach	Approx. 5.8kg (12.8lb) (with RC-PR5 handle)
Power source	BDC72 Li-ion (5986 mAh)
Operating time (20°C)	~ 4 hours
Prism-2 EDM Range	4000m (13123ft)
Prism EDM Accuracy	2mm (0.0065 ft) + 2ppm
Non-Prism Range	Up to 600m (1968ft)
Non-Prism Accuracy	2mm (0.0065 ft) + 2ppm
UltraTrac Range Prism-2	Up to 800m (2624ft)
Turning Speed	85°/sec
Tracking Speed	15°/sec
Brand	Sokkia
